AEC380-DESCRIPTION

Quantity:

● Easy to learn to operate user interface with smart color touch screen.

● To meet the great demand embedded work, the embedding platform can be arranged at both right and left sides which be controlled performance separately or process embedding work simultaneously.

● It adopts six heating ways and precise temperature control system.

● Embedding module, cold spot and paraffin trimmer are integrated.

● The paraffin flow can be released by manual or foot switch through Electromagnetic valve .

● Forceps holder with constant temperature support the residual wax be drained automatically ,so it can effectively remove the paraffin adhering in the tip of the forceps.

● Embedding mold tray with constant temperature be in favor of removing the wax adhering in embedding mold ,which facilitate the recycling of embedding mold.

● The brightness of LED lights can be freely adjusted according to desired needs.

●The magnifier with metal hose which can be flexibly adjust the position according to the desired needs.

●Safety works. It adopts non-metallic materials for the focus area in contact with the user’s hands in avoid any discomfort caused by contacting heating parts during embedding .


Combination 1 :paraffin dispenser connects one embedding platform

1.Capacity of tissue tray : 2 baskets( 100 cassettes/basket)

2.Capacity of embedding mold tray : 100 pcs

3.Paraffin reservoir : 7 L

4.Temperature range :

       Paraffin reservoir : ambient~90℃

       Basket tray : ambient~90℃

       Working area : ambient~90℃

       Forceps holder : 65℃ constantly

       Cold spot : ambient~ -5℃

       Embedding mold tray : ambient~90℃

5.Power : 1350VA

6.Voltage : 220V±10% 50Hz

7.Dimensions : 1260mm X640mm X520mm(W*D*H)

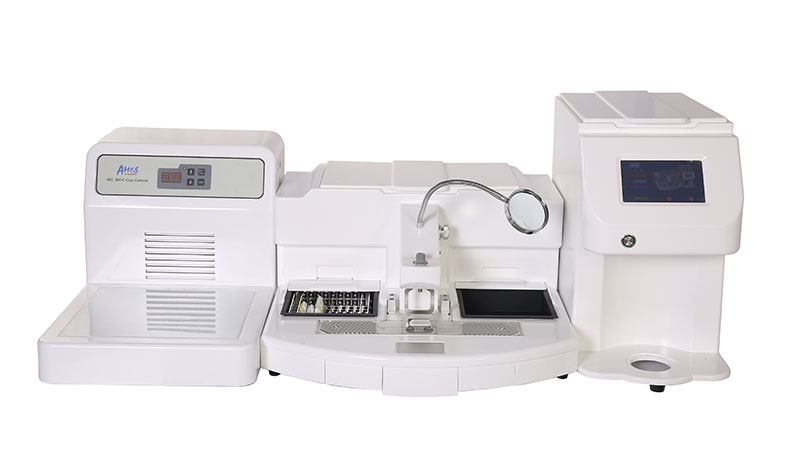

Combination 2 : two embedding platform be placed at right and left side of the paraffin dispenser


1.Capacity of tissue tray : 4 baskets( 100 cassettes/basket)

2.Capacity of embedding mold tray : 200 pcs

3.Paraffin reservoir : 7 L

4.Temperature range :

       Paraffin reservoir : ambient~90℃

       Basket tray : ambient~90℃

       Working area : ambient~90℃

       Forceps holder : 65℃ constantly

       Cold spot : ambient~ -5℃

       Embedding mold tray : ambient~90℃

5.Power : 2220VA

6.Voltage : 220V±10% 50Hz

7.Dimensions : 2220mm X640mm X520mm(W*D*H)
