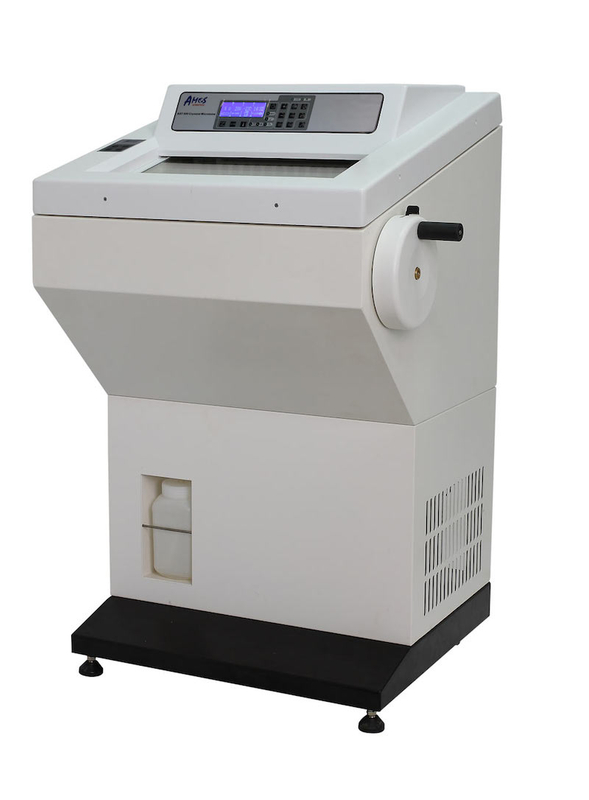

AST500 Semi-automatic Cryostat Microtome

Our Semi-automatic Microtome Cryostat is a cutting-edge tool for frozen tissue sectioning. Combining precision and user-friendliness, it simplifies the process, producing consistent, high-quality sections ideal for rapid pathological assessment and research applications.

Specification of AST500 Semi-automatic Microtome Cryostat

Freeze chamber minimum temperature

-35℃±2℃

Freeze shelf minimum temperature

-45℃±5℃

Lowest temperature of Peltier unit on freeze shelf

-55℃±5℃

Lowest temperature of Peltier unit on Specimen Clamp

-50℃±5℃(working time of Peltier is 15 minutes.)

Maximum specimen size

35×35mm

Specimen vertical stroke

48±1mm

Specimen horizontal stroke

15±0.2mm

Coarse feeding speed

300μm/s (slow) or 900μm/s(rapid)

Section thickness range

0μm~100μm adjustable;

0μm~3μm, in 0.5μm increments;

3μm~10μm, in 1μm increments;

10μm~20μm, in 2μm increments;

20μm~100μm, in 5μm increments;

Trimming thickness range

10μm~600μm adjustable;

10μm~50μm, in 5μm increments;

50μm~100μm, in 10μm increments;

100μm~600μm, in 50μm increments;

Retraction range

0~80μm adjustable, in 5μm increments

Voltage and frequency

220 V ± 10%, 50 HZ / 110 V ± 10%, 60 HZ

Nominal Power

1000 W

Weight

about 130 KG

Dimensions(W×D×H)

805×715×1195mm
