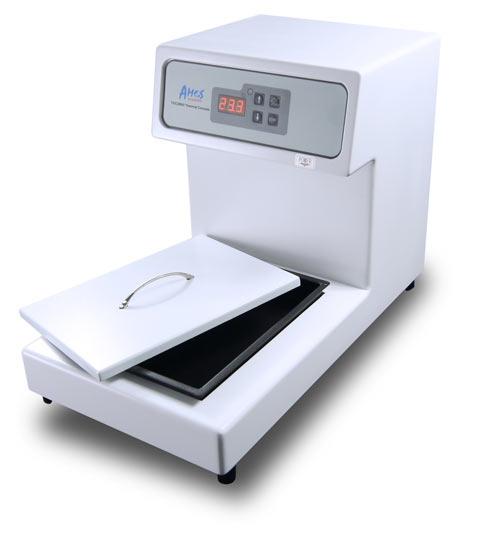

Embedding Dispensing Console
• Large paraffin tank capacity: 6 Liter
• The lamp brightness can be easily adjusted, according to ambient light brightness
• The large LCD screen is based on user-friendly design
• Automated "Wake up" function can be easily programmed
Working surface
• The extra large working surface allows the pathologist to process more samples simultaneously
• The paraffin flow can be precisely controlled by the finger touch pad or the foot pedal
• The paraffin flow rate can be controlled by the knob
• The "built-in" forceps heating satation can heat 6 forceps simultaneously
• The full information LCD screen shows current/setting temperature of paraffin tank, left/right tray, platform surface and forceps heating stattion respectively
• The peltier cold spot's temperature range is from ambient to -5℃
Embedding Dispensing Console
• Large paraffin tank capacity: 6 Liter
• The lamp brightness can be easily adjusted, according to ambient light brightness
• The large LCD screen is based on user-friendly design
• Automated "Wake up" function can be easily programmed
Working surface
• The extra large working surface allows the pathologist to process more samples simultaneously
• The paraffin flow can be precisely controlled by the finger touch pad or the foot pedal
• The paraffin flow rate can be controlled by the knob
• The "built-in" forceps heating satation can heat 6 forceps simultaneously
• The full information LCD screen shows current/setting temperature of paraffin tank, left/right tray, platform surface and forceps heating stattion respectively
• The peltier cold spot's temperature range is from ambient to -5℃
⊙Capacity : Paraffin reservoir: 6Lt
Cassettes/molds tray: 1.4Lt
⊙Working temperature(increments 1℃):
Paraffin Tank: from ambient to 90℃
Cassettes/molds tray: from ambient to 90℃
Working table : from ambient to 90℃
Peltier cold spot: from ambient to -5℃
Forceps Holder: 65℃constant
⊙Rated Power :1200 W
⊙Voltage/Frequency:AC 220V 50Hz or AC 110V 60Hz
⊙Fuse:220V/8A (110V/15A)
⊙Dimensions:560mm(Width)×640mm(Depth)×400mm(Height)
⊙Weight:about 26Kg
⊙Capacity : Paraffin reservoir: 6Lt
Cassettes/molds tray: 1.4Lt
⊙Working temperature(increments 1℃):
Paraffin Tank: from ambient to 90℃
Cassettes/molds tray: from ambient to 90℃
Working table : from ambient to 90℃
Peltier cold spot: from ambient to -5℃
Forceps Holder: 65℃constant
⊙Rated Power :1200 W
⊙Voltage/Frequency:AC 220V 50Hz or AC 110V 60Hz
⊙Fuse:220V/8A (110V/15A)
⊙Dimensions:560mm(Width)×640mm(Depth)×400mm(Height)
⊙Weight:about 26Kg
