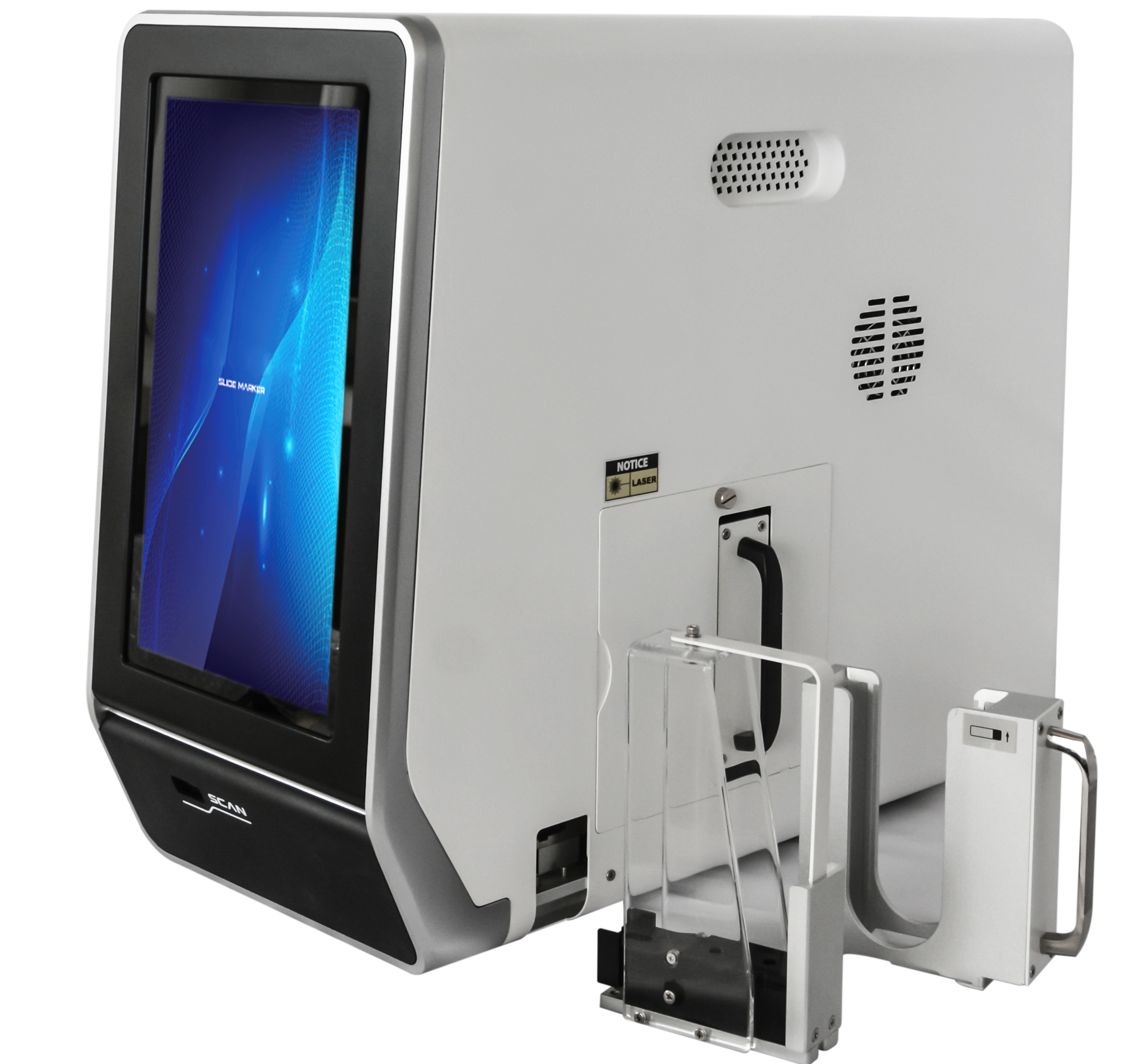

SM100 Laser Slide Printer

Simple design, easy use;

High printing speed,3-5 seconds per slide;

Noncontact UV laser technology;

Excellent ability to export characters, numbers, letters, 1D & 2D codes, graphics;

Fully compatible with LIS/HIS system;

11 inch LED touch screen via built-in software, also support to connect external PC;

Built in bar-code scanner, and support to connect external scanners;

Built in air purification system.

Technical specification

Printing technology              UV Laser Marking

Print speed                     3-5 seconds/slide

Print resolution                  2500dpi

Slide type                       Color Frosted slides

Loading hopper                   1

Loading hopper max capacity       100 slides

Collection hopper max capacity      100 slides

Compatible system                 Open to connect HIS/LIS systems

Dimension LxWxH                  490mm x 230mm x 435mm

Weight                           22kg

Power requirement                100-240 V AC 50/60Hz, 300VA

Other configuration                1. 11 inch touch screen;

                               2. Built-in bar-code scanner;

                               3. Bulit-in air purification system
