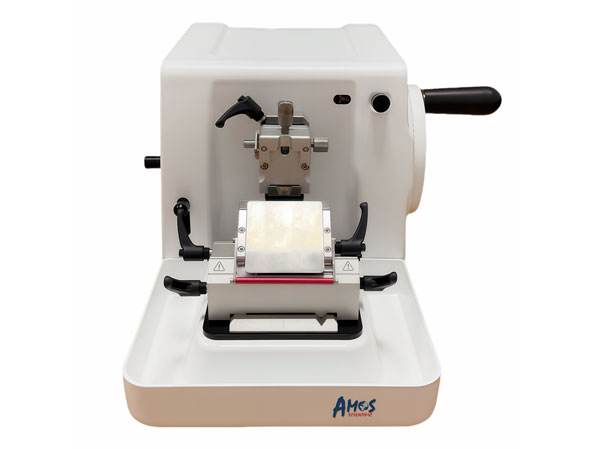

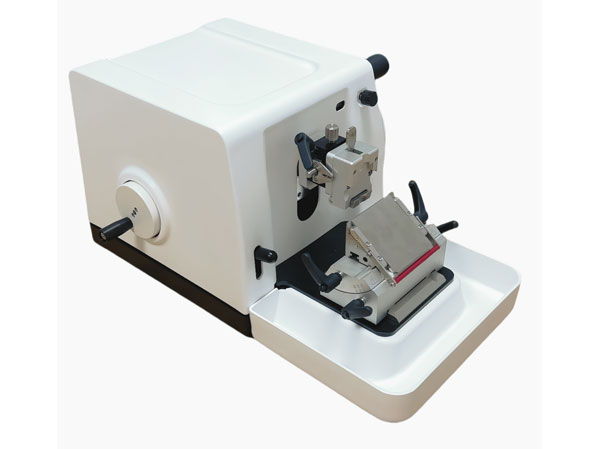

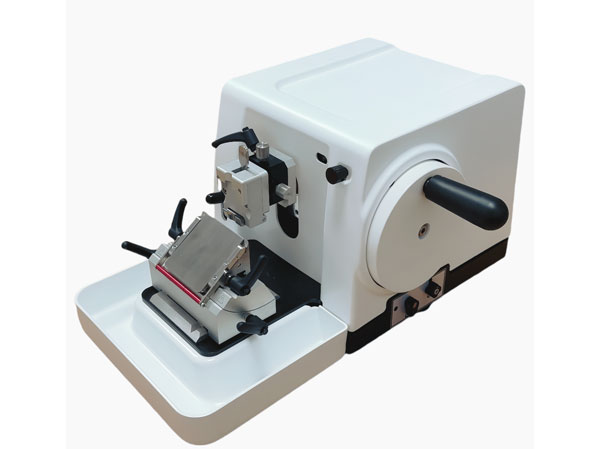

AMR 400 is a rotary microtome that achieves pure mechanical manual sectioning by moving and feeding samples forward and backward, as well as rotating the handwheel for sectioning. It has high sectioning accuracy and is easy to operate. The following are some of its performance introductions:
⊙ The exterior casing is made of flame-retardant ABS engineering plastic, with a streamlined design that is more aesthetically pleasing.
⊙ The removable debris tray has a larger capacity.
⊙ The retraction function can be adjusted with or without, with a retraction value of approximately 220 microns.
⊙ Universal sample holder, compatible with international standard embedding cassettes.
⊙ The handwheel can be locked at any point or when the sample is at the top, ensuring safe replacement of the sample
⊙ Quick trimming function, capable of achieving quick trimming of 10 microns and 50 microns.
Spacious section waste tray
Ergo-handwheel handle
Convenient storage area on top of instrument
Disposable blade holder with integrated safety finger protection guard
Two handwheel locks :handwheel can be locked at any position
Distortion-resistant base plate ensures optimum overall stability
Both low &high profile disposable blade are usable
Two types of specimen clamp:standard specimen clamp and“C”type specimen clamp
Retraction function:approx 220μm,could be deactivated
Extremely smooth running force compensation system
Section thicknes setting: Oμm～60μm adjustable
Oμm~2μm, in 0.5μm increments;
2μm～10μm, in 1μm increments;
10μm~20μm, in 2μm increments;
20μm～60μm, in 5μm increments;
Trimming thickness:10,50μm adjustable
Retraction range:220 μm,could be deactived
Maximum specimen size:40×50×30 mm or standard cassette
Specimen vertical stroke:59 mm
Specimen horizontal stroke:28 mm
Specimen holder adjusted system:Horizontal orientation:±8°
Vertical orientation:±8°
Blades holder base repositioning(left-right):50mm
Advanced feed by rotating left handwheel a circle around:0.55mm
Dimensions: Width: 417 mm(276mm without handwheel)
Depth:525 mm
Height:280 mm
